分類

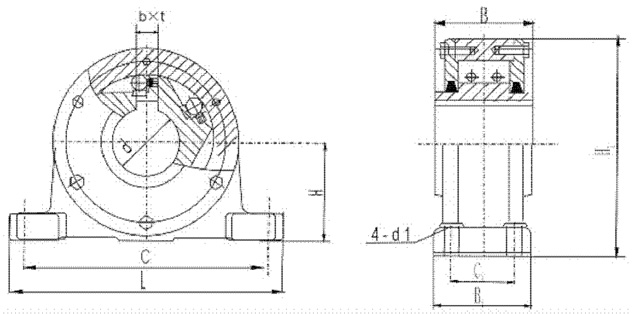

| 型號 | 承載能力N.m | zui大孔徑(φdH7) | 結構尺寸 | ||||||||||
| b*t | C | L | B | C1 | B1 | H | H1 | D1 | 重量（Kg） | 推薦配用減速機型號 | |||
| GN110 | 690 | 110 | 36*6.7 | 400 | 450 | 140 | 90 | 140 | 160 | 310 | φ21 | 85 | ZQ65 ZQ75 |
| GN130 | 1390 | 130 | 36*7.4 | 430 | 480 | 170 | 120 | 180 | 175 | 340 | 117 | ZQ85 | |
| GN140 | 1390 | 140 | 36*7.4 | 430 | 480 | 170 | 120 | 190 | 175 | 340 | 111 | ZQ85 | |
| GN150 | 2330 | 150 | 40*8.7 | 510 | 580 | 190 | 170 | 230 | 215 | 420 | φ26 | 174 | ZQ100 |
| GN170 | 2330 | 170 | 40*8.7 | 510 | 580 | 190 | 170 | 250 | 215 | 420 | 169 | ZL100 | |
| GN200 | 4840 | 200 | 45*9.9 | 590 | 660 | 220 | 210 | 290 | 275 | 540 | φ32 | 255 | ZL115 |
| GN220 | 4840 | 220 | 50*11.2 | 590 | 660 | 220 | 210 | 290 | 275 | 540 | 240 | Zl130 | |
| 逆止器規格 | zui大逆止力矩(KN.m) | 孔徑(φdH7) | B | B1 | B2 | C | L | C1 | H | H1 | S | b*t | d1 | 重量（Kg） | 推薦配用減速機型號 |
| DTⅡN1-9 | 6.9 | 90 | 140 | 140 | 175 | 400 | 450 | 90 | 160 | 310 | 48 | 25*5.4 | φ21 | 92.8 | DCY200 |
| DTⅡN1-10 | 6.9 | 100 | 28*6.4 | 91.2 | DCY224 | ||||||||||
| DTⅡN1-11 | 6.9 | 110 | 28*6.4 | 89.4 | DCY250 DBY250 | ||||||||||
| DTⅡN1-12 | 13.9 | 120 | 170 | 170 | 160 | 430 | 480 | 120 | 175 | 340 | 32*7.4 | 123.0 | DCY280 DBY280 | ||
| DTⅡN1-14 | 23.3 | 140 | 230 | 230 | 220 | 510 | 580 | 170 | 215 | 420 | 53 | 36*8.4 | φ26 | 192.0 | DCY315 DBY315 |
